Bilder
K-R_EN
| EAN code | 8595568939012 |
| Zolltarifnummer | 73269098 |
| Gewicht | 0,1500 kg/pcs |
| Oberflächenbearbeitung | Magnelis® |
| Temperaturbeständigkeit | -50 - 150 °C |
| Blechstärke | 1 mm |
| Anzahl der Schrauben zur Verbindung | 4 |
| Maß H | 50 mm |
| Maß L | 386 mm |
| Für Höhe der Kabelrinne | 60 mm |

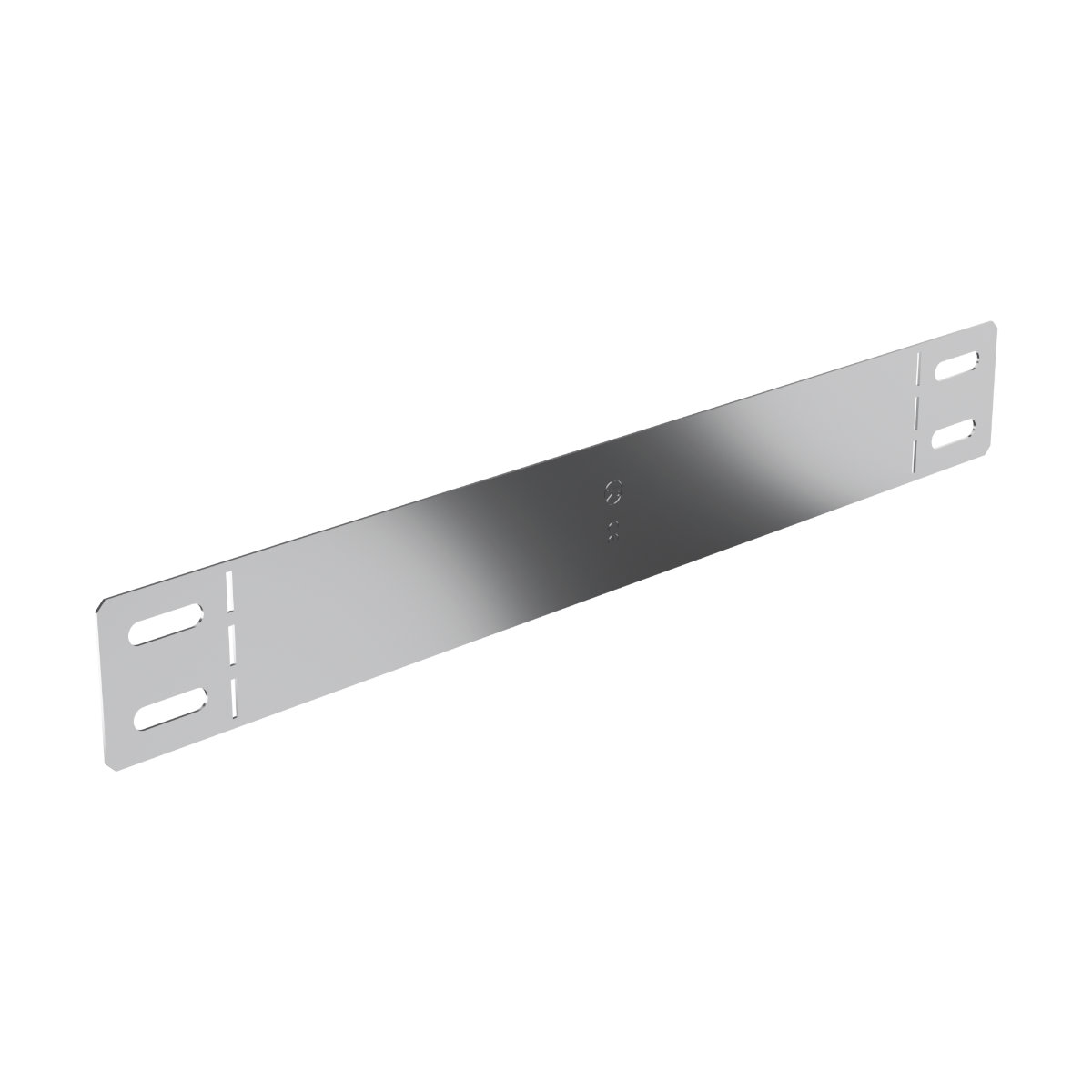

The plate is intended to be used as an end piece or reducer of the cable route. According to the requirement of use, the plate is bent in the perforated places into a U-shape as an end piece or into a Z-shape as a reduction. The end piece / reducer is attached to the tray with NSM 6X10 screws.
