| EAN code | 8595568940650 |
| Zolltarifnummer | 83024190 |
| Gewicht | 0,3298 kg/pcs |
| Oberflächenbearbeitung | Magnelis® |
| Maximale Belastung | 150 kg |
| Maß A | 270 mm |
| Maß B | 64 mm |
| Für die Breite der Kabelrinne | 250 mm |
| Für Höhe der Kabelrinne | 35 - 110 mm |

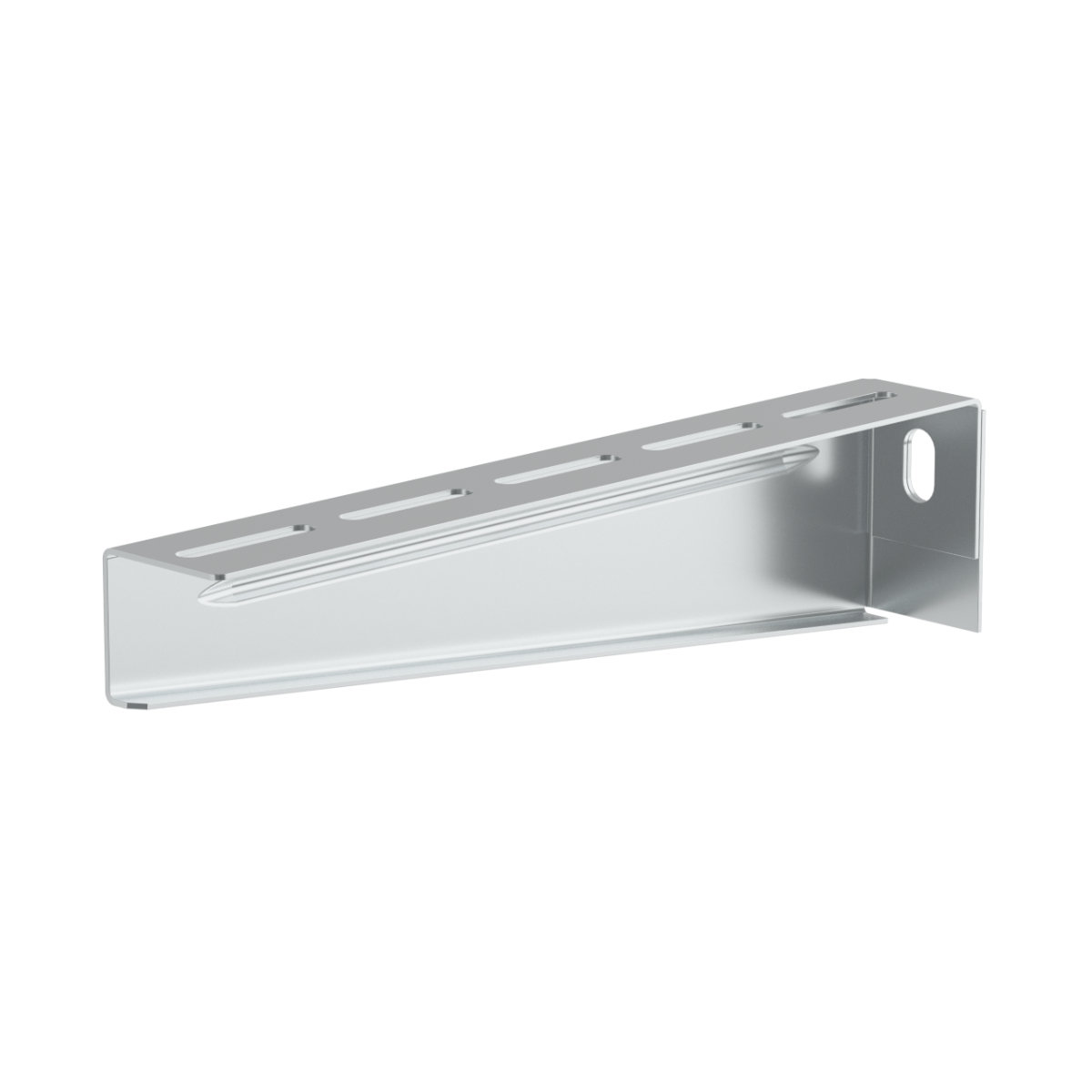

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
