Bilder
DZI_V_EN
| EAN code | 8595568939982 |
| Zolltarifnummer | 73262000 |
| Gewicht | 2,7100 kg/m |
| Oberflächenbearbeitung | Zinkchromat |

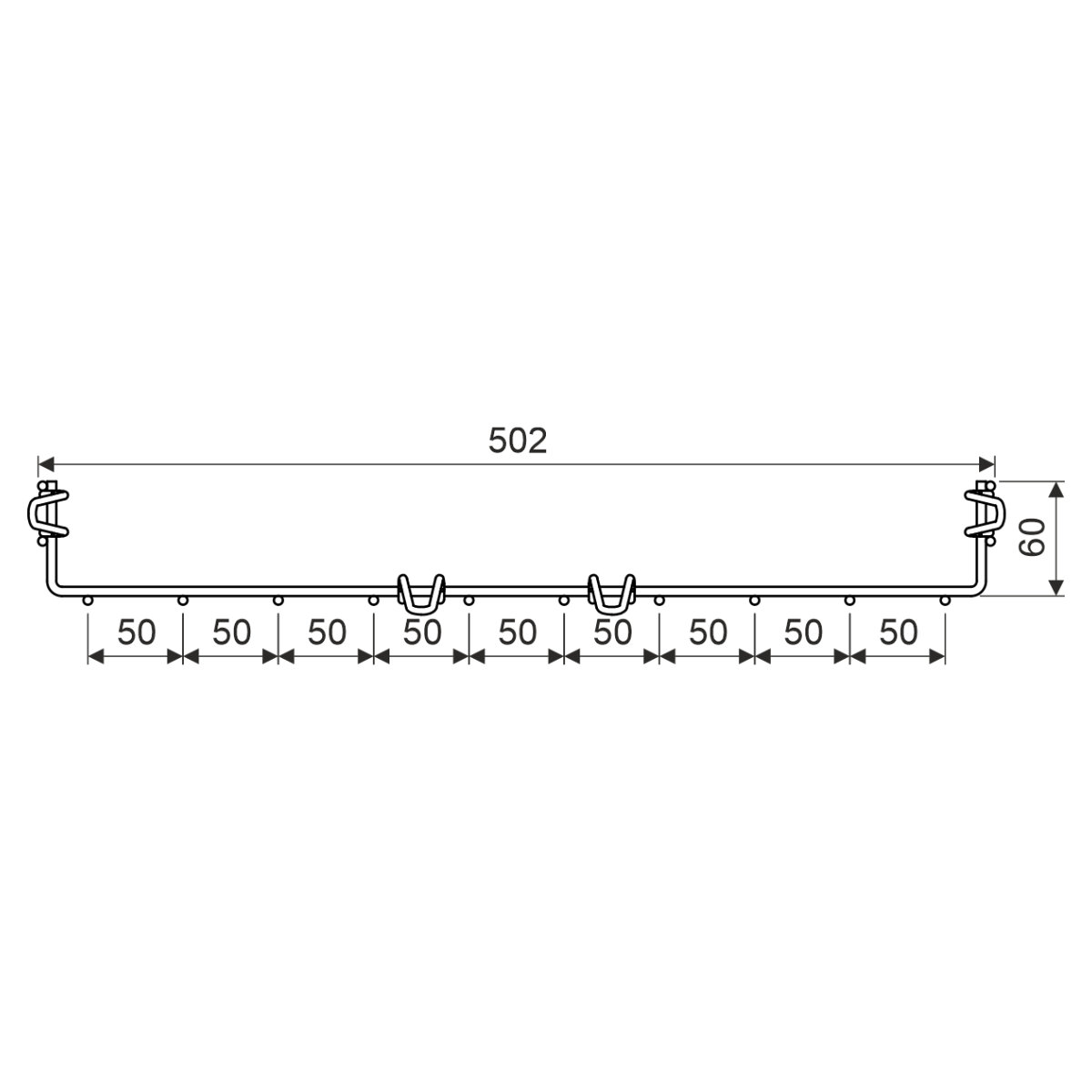

| Breite | 500 mm |
| Höhe | 60 mm |
| Länge | 3000 mm |
| Entsprechend der Norm | ČSN EN 61537 |
| Drahtdurchmesser | 4,6 - 4,8 mm |
| Drahtabstände | 50x100 |
| Integrierte Verbindung im Boden | 2 |

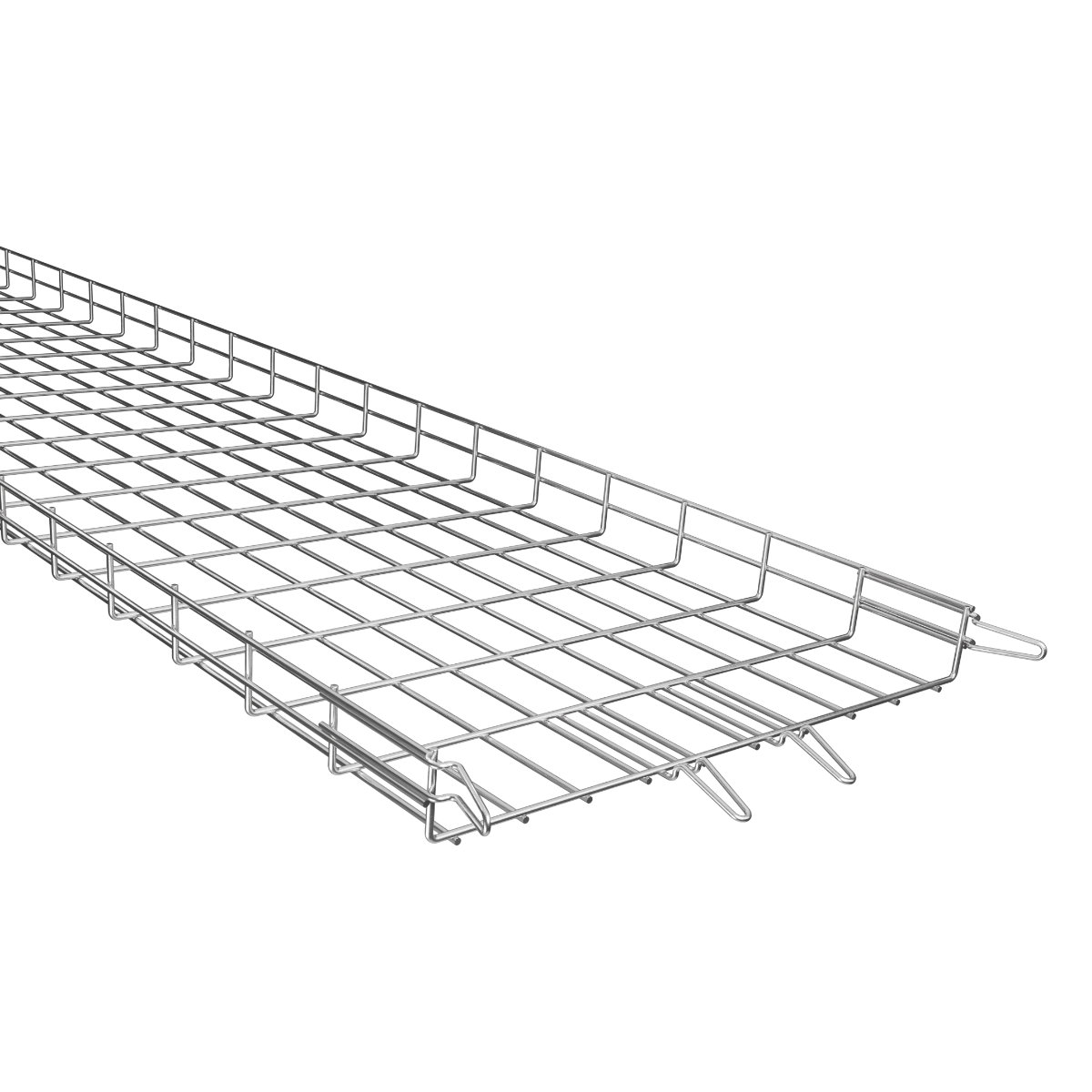

Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
