DZSZ_V_EN
| EAN code | 8595568940148 |
| Zolltarifnummer | 73269098 |
| Gewicht | 0,2090 kg/pcs |
| Oberflächenbearbeitung | Sendzimirverzinkung |
| Breite | 83 mm |
| Höhe | 125 mm |
| Entsprechend der Norm | ČSN EN 61537 |
| Blechstärke | 2 mm |
| Für die Breite der Kabelrinne | 60 mm |

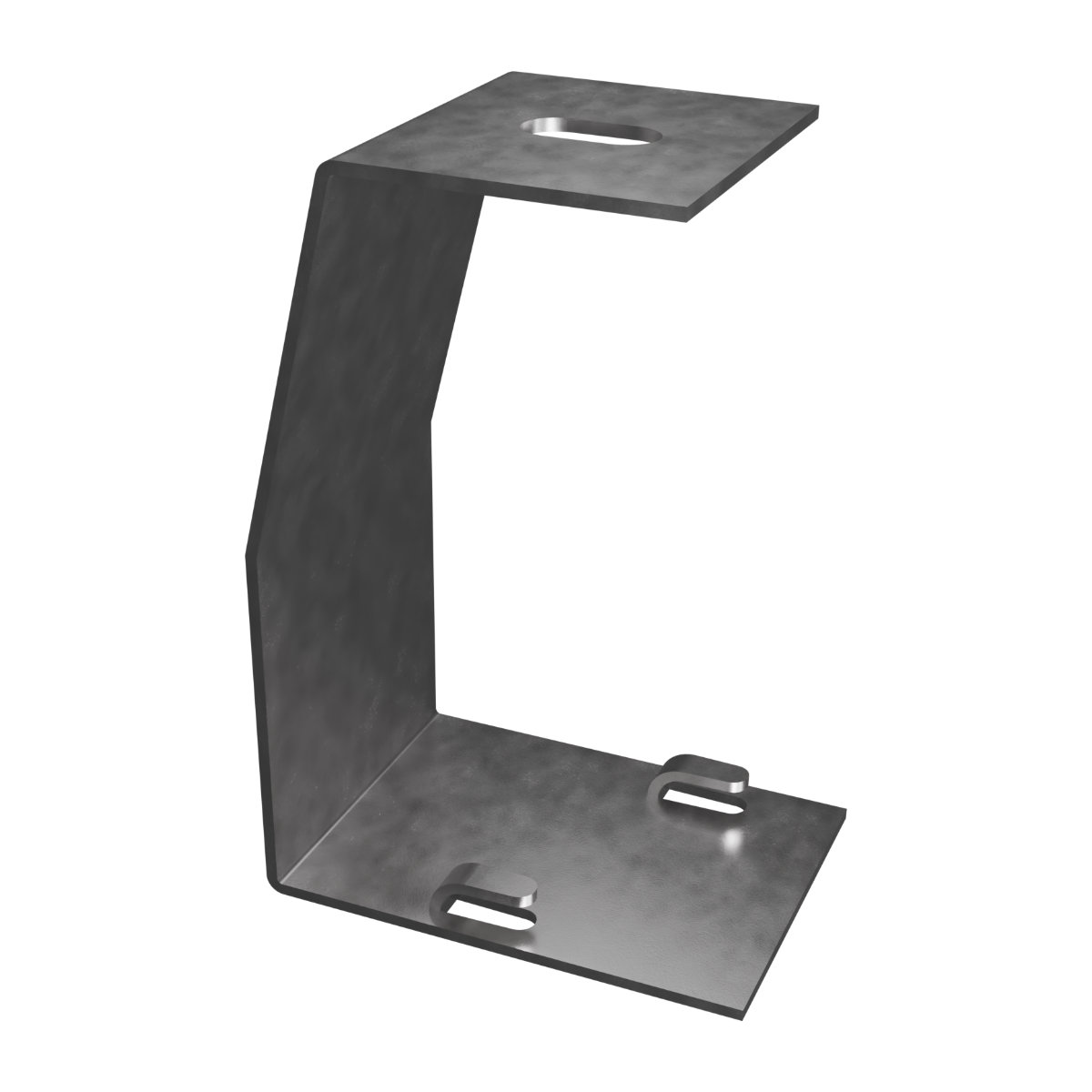

The central hanger is designed for fastening of the wire trays from ceiling together with a threaded rod Ø 8 mm and 2 nuts M 8. The cable tray is inserted into the prepared tabs, the ends of the tabs are squeezed and the tray is attached to the hanger.
